Pipe tee & Crosses size

  • Categories：Product Information
  • Author：Zhongran
  • Source：Hebei Zhongran Pipeline Co., Ltd.
  • Updated：2020-09-12
  • Views：738

【Summary Description】

Pipe tee & Crosses size

【概要描述】

  • Categories：Product Information
  • Author：Zhongran
  • Source：Hebei Zhongran Pipeline Co., Ltd.
  • Updated：2020-09-12
  • Views：738
Details

A tee is also called triplet,three way and "T" pieces and it can be used to either combine or split a fluid flow.



More Tee size range:Pipe Tee, LT, Lateral tee , RT, Reducing tee, Tee fittings accord to ANSI, ISO, JIS and DIN Standards, Measures 1/2 to 56 Inches.

Pattern Weld Seamless
Nominal size 1/2”-48” (DN15-DN1200) 1/2”-20” (DN15-DN500)
Wall thickness 2~100mm 2~50mm
Bend radius SCH5S-SCH160 ,XXS SCH5-SCH160
Type Tee/reducing tee Tee/reducing tee

Most common are tees with the same inlet and outlet sizes, but 'reducing' tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity to control the volume when requried.

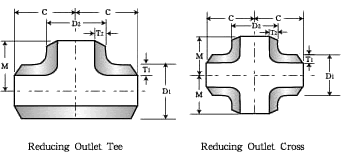

Nominal pipe
DN size 		Outside Diameter at Bevel Center to End
D1 D2 C M
Series A Series B Series A Series B
20×15 26.9 25 21.3 18 29 29
25×20
25×15 		33.7
33.7 		32
32 		26.9
21.3 		25
18 		38
38 		38
38
32×25
32×20
32×15 		42.4
42.4
42.4 		38
38
38 		33.7
26.9
21.3 		32
25
18 		48
48
48 		48
48
48
40×32
40×25
40×20
40×15 		48.3
48.3
48.3
48.3 		45
45
45
45 		42.4
33.7
26.7
21.3 		38
32
25
18 		57
57
57
57 		57
57
57
57
50×40
50×32
50×25
50×20 		60.3
60.3
60.3
60.3 		57
57
57
57 		48.3
42.4
33.7
26.9 		45
38
32
25 		64
64
64
64 		60
57
51
44
65×50
65×40
65×32
65×25 		76.1(73)
76.1(73)
76.1(73)
76.1(73) 		76
76
76
76 		60.3
48.3
42.4
33.7 		57
45
38
32 		76
76
76
76 		70
67
64
57
80×65
80×50
80×40
80×32 		88.9
88.9
88.9
88.9 		89
89
89
89 		76.1(73)
60.3
48.3
42.4 		76
57
45
38 		86
86
86
86 		83
76
73
70
90×80
90×65
90×50
90×40 		101.6
101.6
101.6
101.6 		-
-
-
- 		88.9
76.1(73)
60.3
48.3 		-
-
-
- 		95
95
95
95 		92
89
83
79
100×90
100×80
100×65
100×50
100×40 		114.3
114.3
114.3
114.3
114.3 		-
108
108
108
108 		101.6
88.9
76.1(73)
60.3
48.3 		-
89
76
57
45 		105
105
105
105
105 		102
98
95
89
86
125×100
125×90
125×80
125×65
125×50 		139.7
139.7
139.7
139.7 		133
-
133
133
133 		114.3
101.6
88.9
76.1(73)
60.3 		108
-
89
76
57 		124
124
124
124
124 		117
114
111
108
105
150×125
150×100
150×90
150×80
150×65 		168.3
168.3
168.3
168.3
168.3 		159
159
-
159
159 		139.7
114.3
101.6
88.9
76.1(73) 		133
108
-
89
76 		143
143
143
143
143 		137
130
127
124
121
200×150
200×125
200×100
200×90 		219.1
219.1
219.1
219.1 		219
219
219
- 		168.3
139.7
114.3
101.6 		159
133
108
- 		178
178
178
178 		168
162
156
152
200×200
200×150
200×125
200×100 		273.0
273.0
273.0
273.0 		273
273
273
273 		219.1
168.3
139.7
114.3 		219
159
133
108 		216
216
216
216 		208
194
191
184
300×250
300×200
300×150 		323.9
323.9
323.9 		325
325
325 		273.0
219.1
168.3 		273
219
159 		254
254
254 		241
229
219
300×125 323.9 325 139.7 133 254 216
350×300
350×250
350×200
350×150 		355.6
355.6
355.6
355.6 		377
377
377
377 		323.9
273.0
219.1
168.3 		325
273
219
159 		279
279
279
279 		270
257
248
238
400×350
400×300
400×250
400×200
400×150 		406.4
406.4
406.4
406.4
406.4 		426
426
426
426
426 		355.6
323.9
273.0
219.1
168.3 		377
325
273
219
159 		305
305
305
305
305 		305
295
283
273
264
450×400
450×350
450×300
450×250
450×200 		457.2
457.2
457.2
457.2
457.2 		478
478
478
478
478 		406.4
355.6
323.9
273.0
219.1 		426
377
325
273
219 		343
343
343
343
343 		330
330
321
308
298
500×450
500×100
500×350
500×300
500×250
500×200 		508.0
508.0
508.0
508.0
508.0
508.0 		529
529
529
529
529
529 		457.2
406.4
355.6
323.9
273.0
219.1 		478
426
377
325
273
219 		381
381
381
381
381
381 		368
356
356
346
333
324
550×500
550×450
550×400 		559
559
559 		-
-
- 		508
457
406 		-
-
- 		419
419
419 		406
394
381
600×550
600×550
600×450 		610
610
610 		-
630
630 		559
508
457 		-
530
480 		432
432
432 		432
432
419
650×600
650×550
650×500 		660
660
660 		-
-
- 		610
559
508 		-
-
- 		495
495
495 		483
470
457
700×650
700×600
700×550 		711
711
711 		-
720
- 		660
610
559 		-
630<
- 		521
521 521 		521
508 495
750×700
750×650
750×600 		762
762
762 		-
-
- 		711
660
610 		-
-
- 		559
559
559 		546
546
533
800×750
800×700
800×650 		813
813
813 		-
820
- 		762
711
660 		-
720
- 		597
597
597 		584
572
572
850×800
850×750
850×700 		864
864
864 		-
-
- 		813
762
711 		-
-
- 		635
635
635 		622
610
597
900×850
900×800
900×750 		914
914
914 		-
920
- 		864
813
762 		-
820
- 		673
673
673 		660
648
635
950×900
950×850
950×800 		965
965
965 		-
-
- 		914
864
813 		-
-
- 		711
711
711 		711
698
686
1000×950
1000×900
1000×8500 		1016
1016
1016 		-
1020
- 		965
914
864 		-
920
- 		749
749
749 		749
737
724
1000×1000
1050×950
1050×900 		1067
1067
1067 		-
-
- 		1016
965
914 		-
-
- 		762
762
762 		711
711
711
1100×1050
1100×1000
1100×950 		1118
1118
1118 		-
1120
- 		1067
1016
965 		-
1020
- 		813
813
813 		762
749
737
1150×1100
1150×1050
1150×1000 		1168
1168
1168 		-
-
- 		1118
1067
1016 		-
-
- 		851
851
851 		800
787
775
1200×1150
1200×1100
1200×1050 		1220
1220
1220 		-
1220
- 		1168
1118
1067 		-
1120
- 		889
889
889 		838
838
813
Nominal pipe size Outside Diameter at Bevel Center to End
D C M
DN INCH Series A Series B
15 1/2 21.3 18 25
20 3/4 26.9 25 29
25 1 33.7 32 38
32 11/4 42.4 38 48
40 11/2 48.3 45 57
50 2 60.3 57 64
65 21/2 76.1(73) 76 76
80 3 88.9 89 86
90 31/2 101.6 ― 95
100 4 114.3 108 105
125 5 139.7 133 124
150 6 168.3 159 143
200 8 219.1 219 178
250 10 273.0 273 216
300 12 323.9 325 254
350 14 355.6 377 279
400 16 406.4 426 305
450 18 457.2 478 343
500 20 508.0 529 381
550 22 559 ― 419
600 24 610 630 432
650 26 660 ― 495
700 28 711 720 521
750 30 762 ― 559
800 32 813 820 597
850 34 864 ― 635
900 36 914 920 673
950 38 965 ― 711
1000 40 1016 1020 749
1050 42 1067 ― 762 711
1100 44 1118 1120 813 762
1150 46 1168 ― 851 800
1200 48 1220 1220 889 838
